Raptor Crash Cushion barrier pole protector hire in Melbourne, Sydney, Brisbane, Perth and Hobart.

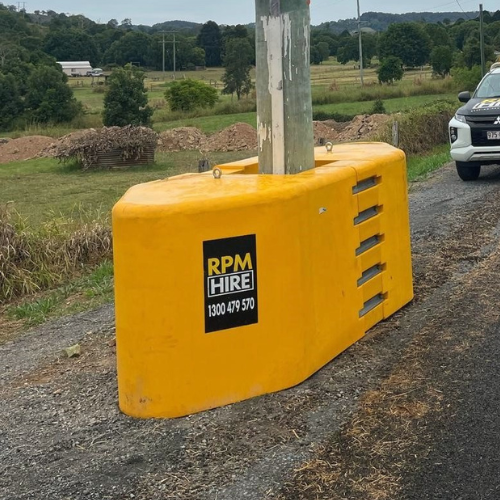

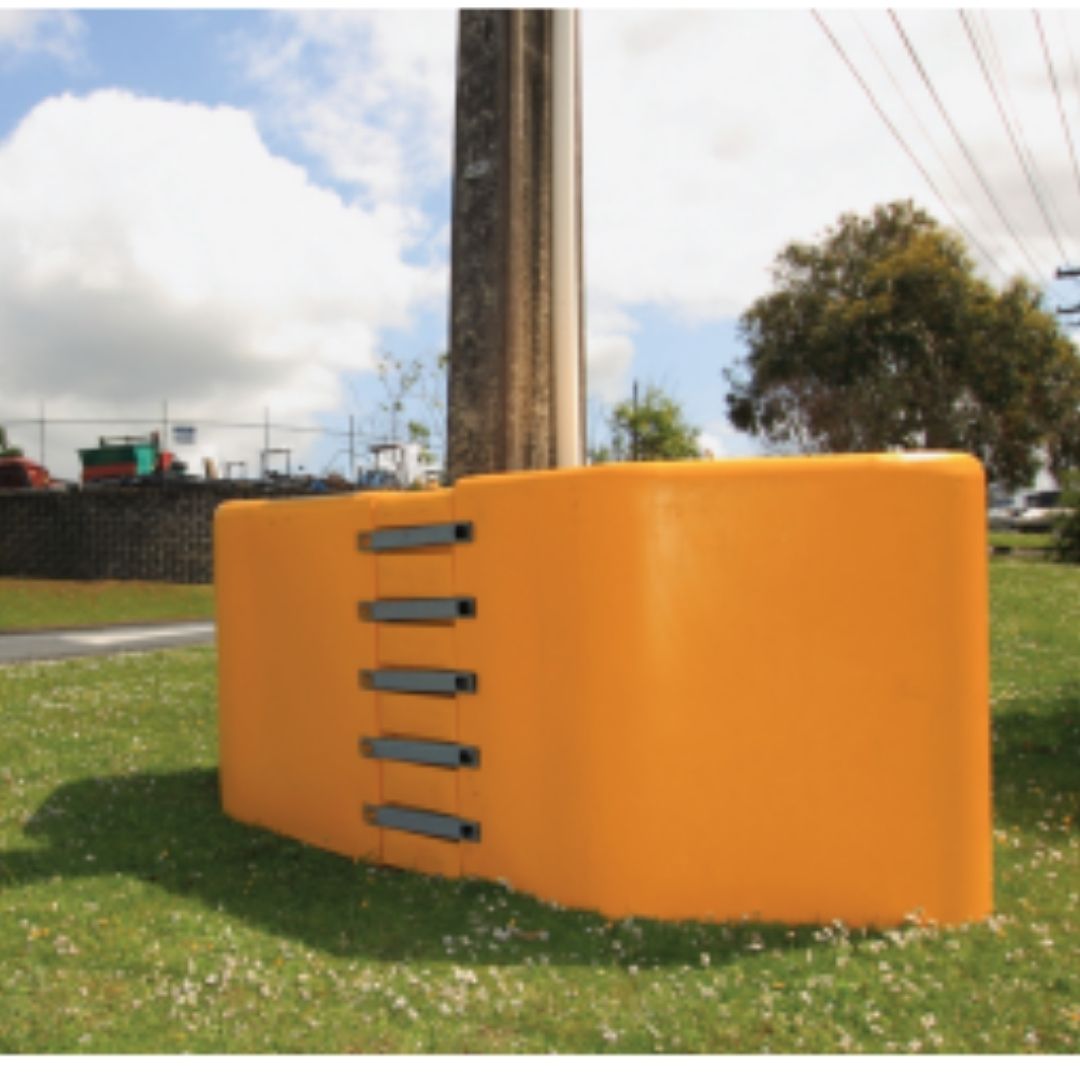

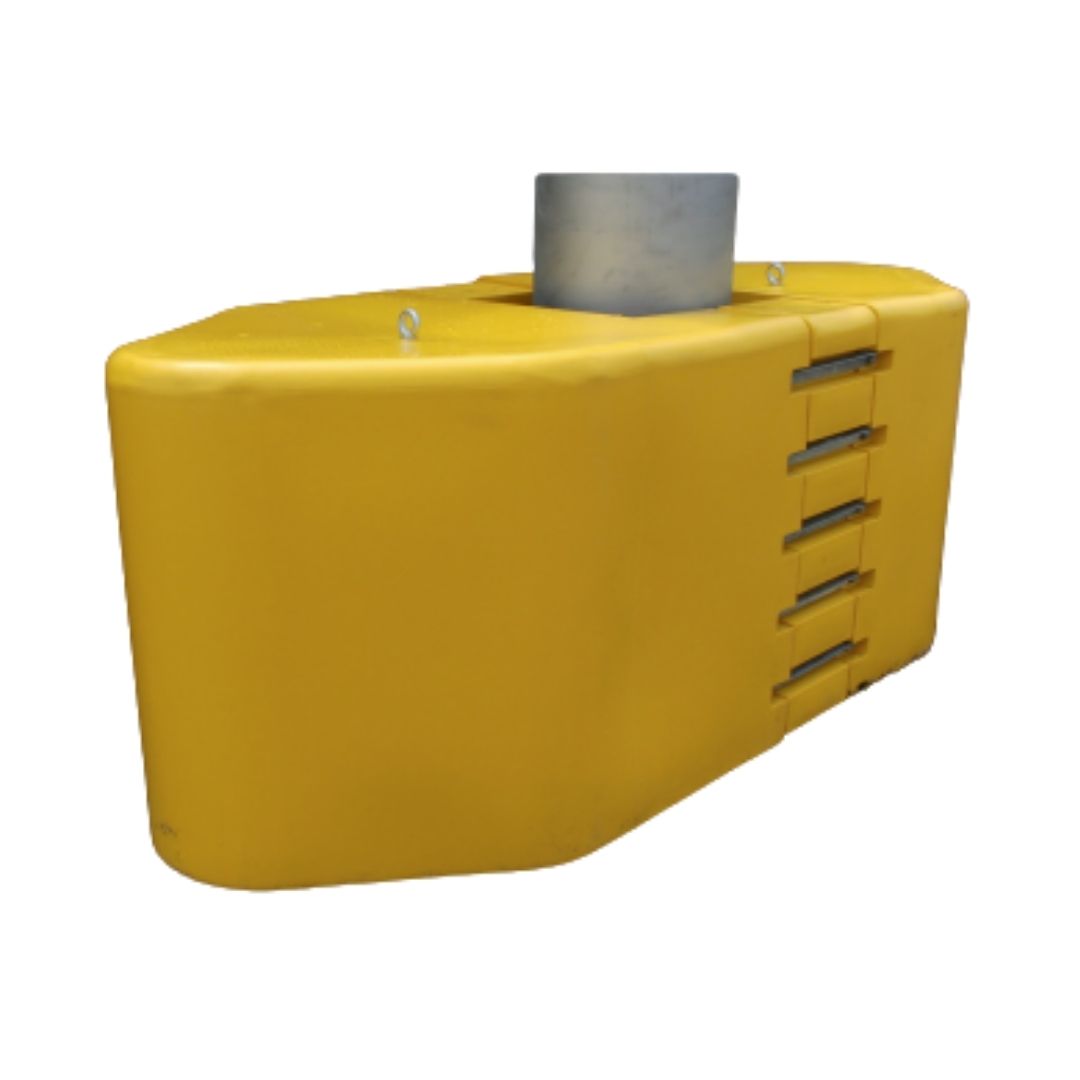

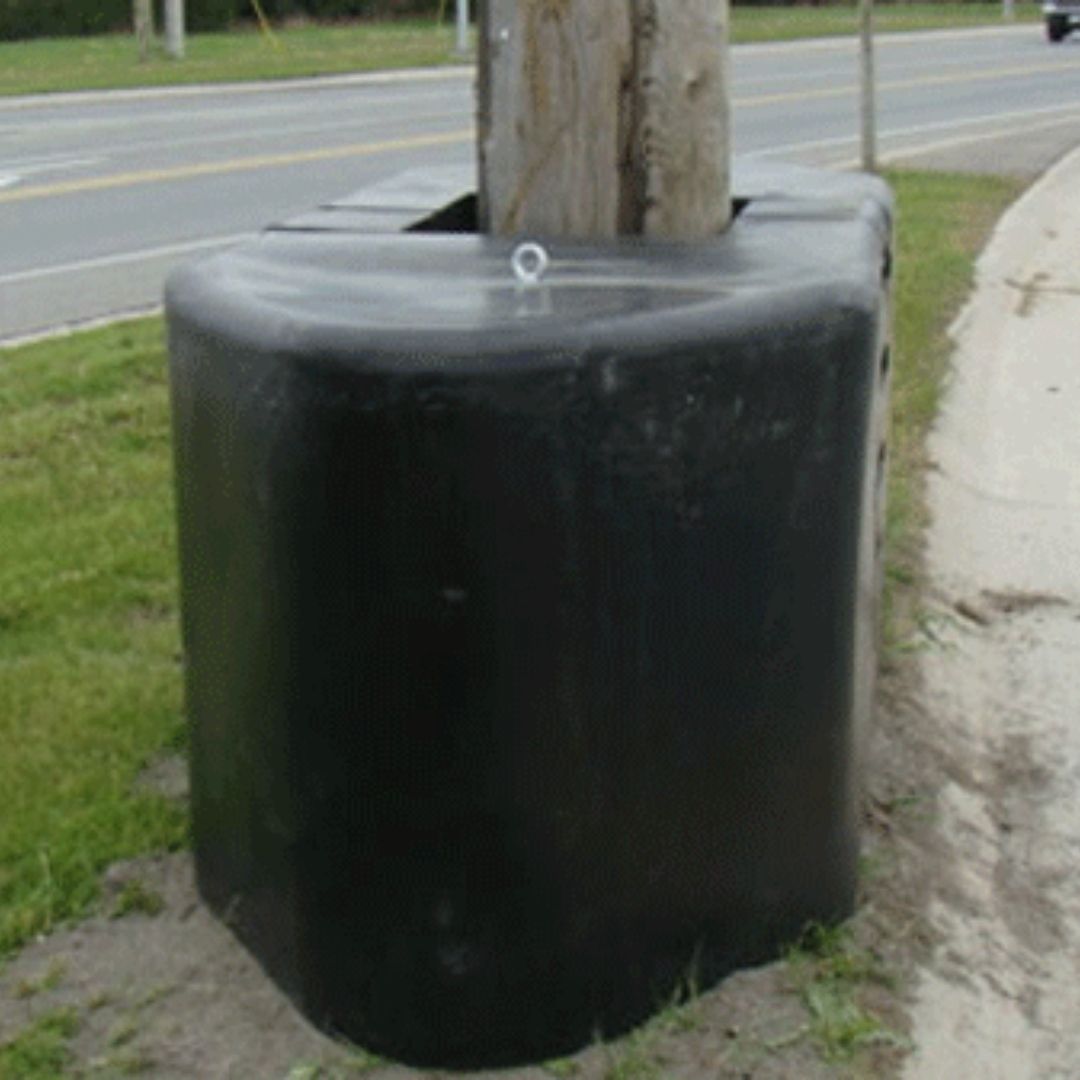

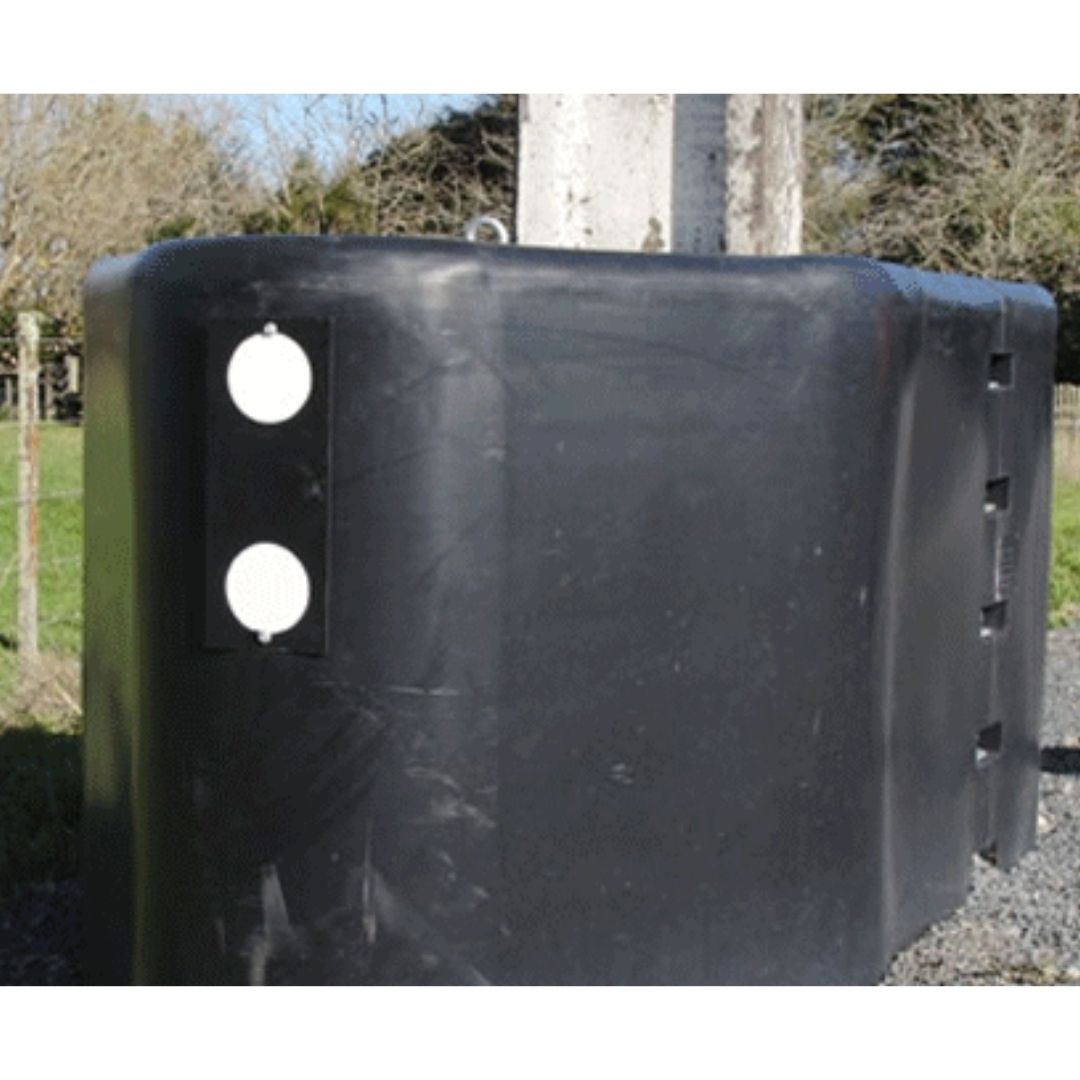

The Raptor Crash Cushion is an energy absorbing safety device designed to reduce the severity of vehicle impacts with utility poles or tree. The raptors barriers unique technology offers a compact low-cost solution in places where typical crash cushions would not physically fit and be able to provide sufficient protection.
The Raptor cushion protector offers exceptional vehicle control, equip with energy absorbing capabilities during head on collisions; the impact energy is absorbed by internal plastic cartridges. In addition, the raptor barrier is also capable of deflecting a vehicle in side-on impacts. Its exceptional vehicle control and energy absorbing capabilities make the Raptor crash cushion an ideal traffic management solution for utility pole and tree protection. The Raptor barrier has been tested to both MASH and NCHRP 350 guidelines for a gating, non-re-directive crash cushion and has been judged to have satisfied the required evaluation criteria for Test Level 1 (TL-1).
RPM Hire have a team of barrier and crash cushion experts that can assist with your next hire. We offer full turnkey traffic management solutions including equipment supply, delivery, installation and equipment removal.
For Raptor cushion hire, contact the RPM Hire team via our contact form or call now on 1300 479 570.
Key Features
- Meets both MASH TL1and NCHRP-350 TL-1 test criteria
- Exceptional energy- absorbing capability
- Usable in places typically impossible to protect such as utility poles and trees
- Compact size and easy installation (under 30 minutes)
- Zero maintenance, UV Stabilised, expected lifespan 25 years
- Smooth surfaces and geometry, suitable for vulnerable road users
- After a collision occurs, the non-impacted side can still be re-used
- No foundations are required
- Fully recyclable very low-cost protection

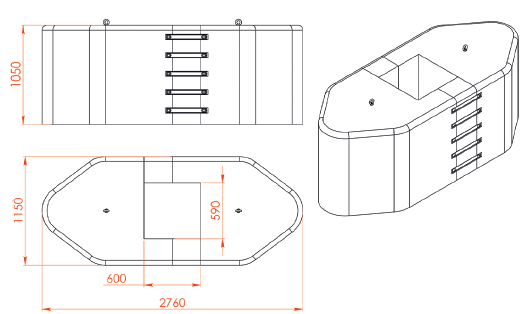

Dimensions & Weight
| Overall Length | 2760mm |
| Height | 1050mm |
| Width | 1150mm |
| Void Size | 600mm x 590mm |
| Shells & Cartridges | Stabilised PE (UV8) |
| Connector & Fixings | Galvanised Steel |
| Weight (per shell) | 110kg |
| Weight (per packer) | 12kg |
The raptor is a safety device purposely aimed to reduce the impact severity of errant vehicles with a utility pole or tree.
Yes. The Raptor barrier has been tested to both MASH and NCHRP 350 guidelines for a gating, non-re-directive crash cushion and has been judged to have satisfied the required evaluation criteria for Test Level 1 (TL-1).
RPM Hire have branch locations across Victoria, New South Wales, Queensland, Western Australia and Tasmania where you can hire the raptor barrier cushion and a various range of traffic management equipment.
Crash Cushion Pole Protector rental is a simple and straight forward process with RPM Hire. We focus on providing high quality road safety equipment and exceptional customer service. Contact the team online today to begin your crash cushion hire process.
RPM Hire specialise in providing traffic management equipment solutions, in addition to the Raptor crash barrier we also stock a range of other crash barriers including Absorb 350, Absorb M, QuadGuard CZ, SLED crash cushion and the smart crash cushion.
See what customers are saying about their recent experiences with RPM Hire visit our customer stories here.
VicRoads – Accepted Safety Barrier Products
VicRoads – Raptor Detail Sheet
NSW Safety Barrier System Acceptance Conditions – RAPTOR Plastic Single Point Protector
Why Are Crash Cushions Important?
Concrete Barriers Vs Water Filled Barriers – Which One Should I Hire?
