QuadGuard m10 – Crash Cushion Hire in Melbourne, Sydney, Brisbane, Perth and Hobart.

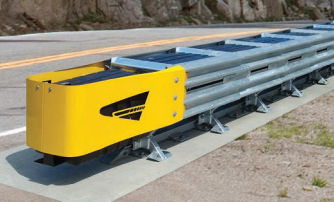

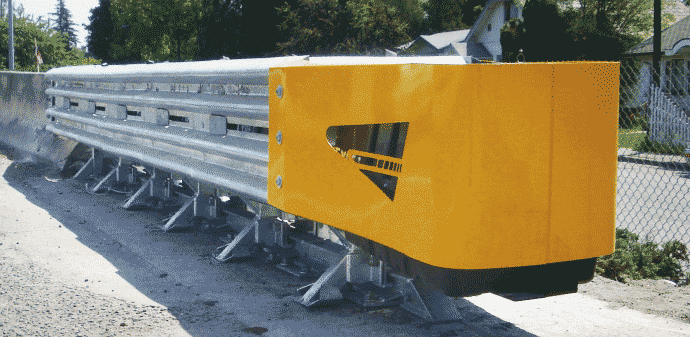

The QuadGuard M10 is a relocatable crash cushion that offers the latest technology for shielding hazards 610mm to 915mm wide. Consisting of an engineered steel nose and crushable, energy absorbing cartridges surrounded by a framework of steel Quad-Beam™ panels. The QuadGuard crash barrier is available to hire throughout Australia with RPM Hire. The QuadGuard crash cushion has been tested to the highest standards and is rated Manual for Assessing Safety Hardware (MASH) Test Level 3.
How does the QuadGuard system work?
The QuadGuard M10 system utilises two types of cartridges in a “staged” configuration that are designed and tested to address vehicles as defined by MASH for both lighter cars and heavier, high centre-of-gravity vehicles. During head-on impact testing within MASH criteria, the QuadGuard M10 has been shown to telescope rearward to absorb the energy of impact. When impacted from the side, within the applicable MASH criteria, it has been shown to redirect the vehicle back towards its original travel path and away from the highway feature.
RPM Hire can offer full turnkey solutions from QuadGuard hire to expert installation services by our dedicated barrier teams, we work together with our customers to ensure the project runs smoothly from beginning to end.
Key Features
- Compliant to MASH TL3.
- Self-supporting steel nose.
- Tension strut backup.
- Monorail guide stabilizers.
- Quadguard can be anchored to a variety of surfaces including concrete and asphalt.
- High strength Quad-Beam™ panels.
- Does not require the use of anchoring chains or tension cables.
- Damaged cartridges can be replaced in a timely manner.
- Potentially reusable after an impact within MASH crash test standards
- QuadGuard can be deployed with Concrete barriers, Steel barrier and HighwayGuard
| Specifications (Test Level 3 System) | ||
| System Length | Effective Length | System Width |
| 6.71m | 6.30m | 610mm |
QuadGuard Diagram
The QuadGuard M10 system utilises two types of cartridges in a “staged” configuration that are designed and tested to address vehicles as defined by MASH for both lighter cars and heavier, high centre-of-gravity vehicles.
If you have any further questions about the QuadGuard or any of the other equipment offered at RPM Hire contact our team online now.
The QuadGuard crash cushion can be used with serval crash barriers providing essential protection, barriers include Concrete Barriers, Steel Barriers and The HighwayGuard.
For more information regarding barrier and end treatment approved applications view our barrier guide online here.
